The EX65 Explosion Protected Camera is a highperformance,smart surveillance camera for explosive environments. Utilizing Dinion 2X imaging, the camera offers unrivaled image quality in the worst lighting conditions. Electropolished 316L stainless steel construction ensures the ultimate environmental protection available today.
A single pre-assembled unit with an integrated junction box, the EX65 is designed to be easy to install. Through any of the four 3/4‑in. conduit entries(M20 adapter also included), connections are made to the convenient terminal block; there is also space for any additional wiring. Also accessible through the junction box is the optional fiber optic module that provides versatility for longer cable runs or where electromagnetic interference is a concern. When choosing an imaging device for critical applications, you need the confidence that you will receive the best in performance. Dinion 2X delivers! The 20-bit image processing enhances sensitivity; the 2X Dynamic extends the dynamic range. This unique combination provides a sharper, more detailed image with outstanding accuracy in color reproduction even under harsh lighting conditions.Camera Features:
• 20-bit processing technology
• CCD sensor with Wide Dynamic Range
• Dynamic engine with Smart BLC
• Detail enhancement
• True day/night performance with switchable filter The EX65 holds all major international explosionprotected certifications for safe use in almost any region of the world. In addition, the EX65 meets NEMA 4X and IP67 ratings. The EX65 has undergone vibration and shock testing to IEC standards, as well as Highly Accelerated Life Testing (H.A.L.T.), which pushes the limits of products to ensure reliability throughout the product’s lifetime.
For performance in complete darkness, there is an infrared illuminator available with 3D diffuser technology to guarantee a crisp, clear, evenlyilluminated image even in pitch black darkness. Infrared illumination also eliminates the need for any conventional high voltage lighting to be installed,which cuts costs significantly. For more information,please refer to the EX65 Explosion Protected Illuminator datasheet. The EX65 gives you the confidence to ensure a safe workplace while getting the picture in the world’s most volatile locations.

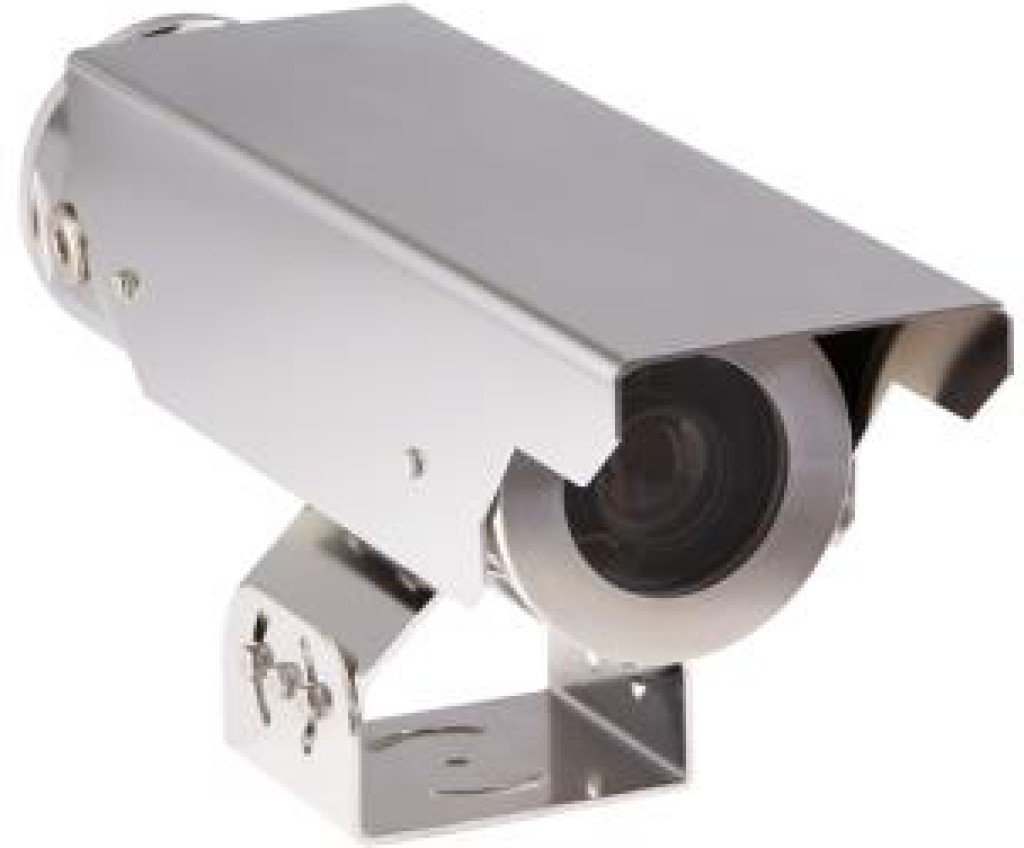

Bosch EX65 Explosion Protected Camera
- Electropolished 316L stainless steel or aluminum construction
- High-resolution, high-sensitivity Dinion 2X imager with WDR
- Integrated junction box
- ATEX, UL, IECEx, and INMETRO Certifications
- Sunshield included
EX65 Explosion Protected Camera
Electrical
| Rated Voltage | 12–24 VAC, 50/60 Hz 12–24 VDC |
|---|---|
| CCD Type | 1/3-in. Interline, WDR dual shutter |
Power Consumption
Typical
| Standard Models (BNC connector)/Fiber Optic Models (ST connector) | |
| 12 VDC (Tamb @ 20 °C) (68 °F) | 6 W / 7.7 W |
| 24 VAC (Tamb @ 20 °C) (68 °F) | 9.4 W / 11.3 W |
| 12 VDC (Tamb @ -50 °C) (-58 °F) | 10.2 W / 11.3 W |
| 24 VAC (Tamb @ -50 °C) (-58 °F) | 15.7 W / 17.6 W |
Maximum
| 12 VDC (Tamb @ 20 °C) (68 °F) | 8.0 W / 9.5 W |
|---|---|
| 24 VAC (Tamb @ 20 °C) (68 °F) | 11.2 W / 13.4 W |
| 12 VDC (Tamb @ -50 °C) (-58 °F) | 16.0 W / 14.7 W |
| 24 VAC (Tamb @ -50 °C) (-58 °F) | 19.3 W / 22.4 W |
Active Pixels
| PAL Model | 752 x 582 |
|---|---|
| NTSC Model | 768 x 494 |
Sensitivity (3200K, scene reflectivity 89%, F1.2)
| Full video (100IRE)/Usable picture (50IRE)/Usable picture (30IRE) | |
| Color | 2.4 lx (0.223 fc) / 0.47 lx (0.044 fc) / 0.15 lx (0.0139 fc) |
| Color + SensUp 10x | 0.24 lx (0.0223 fc) / 0.047 lx (0.00437 fc) / 0.015 lx (0.00139 fc) |
| Monochrome | 0.98 lx (0.091 fc) / 0.188 lx (0.0174 fc) / 0.060 lx (0.0056 fc) |
| Monochrome SensUp 10x | 0.098 lx (0.0091 fc) / 0.019 lx (0.00176 fc) / 0.0060 lx (0.000557 fc) |
Video
| Horizontal Resolution | 540 TVL |
|---|---|
| Signal-to-Noise Ratio | >50 dB |
| Video Output | Composite video 1 Vpp, 75 ohm |
| Synchronization | Internal, Line Lock, HV-lock and Genlock (Burst lock) selectable |
| Shutter | Auto (1/50 [1/60] to 1/10000) selectable Auto (1/50 [1/60] to 1/50000) automatic flickerless, fixed selectable |
| Sensitivity Up | Adjustable from Off up to 10x |
| Day/Night | Color, Mono, Auto |
| Auto Black | Automatic continuous, Off |
| Alarm Output Relay | 30 VAC or +40 VDC, Max 0.5 A continuous, 10 VA |
| Dynamic Engine | XF-Dynamic, 2X-Dynamic, SmartBLC |
| Dynamic Range | 120 dB (20-bit image processing) |
| Dynamic Noise Reduction | Auto, On/off selectable |
| AGC | AGC On or Off (0–30 dB) selectable |
| Smart BLC | On (includes 2X-Dynamic ) / Off |
| Peak White Invert | On/Off |
| White Balance | ATW, ATWhold and manual (2500 to 10000K) |
| Alarm Output | VMD or day/night switch |
| Cable Compensation | Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with Bilinx coaxial communication) |
| Sharpness | Sharpness enhancement level selectable |
| Camera ID | 17-character editable string, position selectable |
| Test Pattern Generator | Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane |
| Lens | 5–50 mm IR corrected |
| Modes | Six (6) preset programmable modes |
| Remote Control | Bilinx coaxial bi-directional communication |
| Video Motion Detection | One area, fully programmable |
| Privacy Masking | Four (4) independent areas, fully programmable |
| Controls | OSD with soft-key operation (multi-lingual) |
| Heater | Included |
Fiber Optic Specifications
| Optical Connector Type | ST |
|---|---|
| Optical Distance Specifications | Specified transmission distances are limited to the optical loss of the fiber and any additional loss introduced by connectors, splices, and patch panels.The modules are designed to operate over the entire optical loss budget range, so they do not require a minimum loss in order to operate |
| Number of Fibers | One (1) |
| Optical Budget | 14 dB |
| Maximum Distance | 4.0 km (2.5 miles) |
| Technology Type | AM Video modulation |
| Wavelength | 850 nm |
| Optical Emitter | LED |
| Transmitter Output Power | 25 uW (–16 dBm) |
| Video Bandwidth | 5 Hz to 10 MHz |
| Differential Gain | < 5% |
| Differential Phase | < 5° |
| Tilt | < 1% |
| Signal-to-Noise Ratio (SNR) | > 55 dB @ 10 dB attenuation > 60 dB @ 7 dB attenuation |
Mechanical
| Dimensions (L x W x H) | 381 x 114 x 114 mm (11.01 x 4.5 x 4.5 in.) without sunhood or mounting cradle |
|---|---|
| Weight | Stainless Steel: 12.9 kg (28.5 lb) Aluminum: 6.4 kg (14 lb) |
| Construction | Electropolished 316L Stainless Steel or Anodized Aluminum |
| Bracket | Pan(±36°)/Tilt(±45°), mounting cradle included |
| Cable Entry | Four (4) 3/4-in. NPT entries; conduit seal included with NTSC models; M20 adapter included with PAL models |
| View Window | 9-mm thick borosilicate float glass |
Environmental
| Aluminum models | -50 °C to 60 °C (-58 °F to 140 °F) |
|---|---|
| Stainless steel models | -50 °C to 55 °C (-58 °F to 131 °F) |
| Storage Temperature | -55 °C to 70 °C (-67 °F to 158 °F) |
| Operating Humidity | 0 to 100% relative (condensing, after installed and sealed) |
| Storage Humidity | 20 to 98% relative (non-condensing) |
