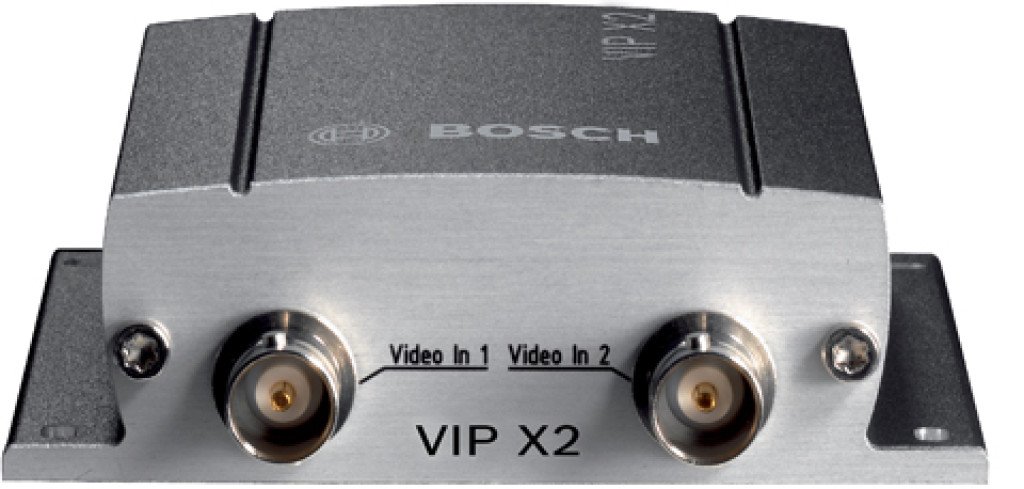

Bosch VIP X2 Dual-channel Video Encoder

2
  • Dual-channel encoder with Dual Streaming
  • High-quality MPEG‑4 from QCIF to 4CIF
  • USB and iSCSI recording
  • Ultra-compact size
  • Multicast and Internet streaming

These ultra-compact IP video encoders support two video channels that can convert both PAL and NTSC signals into MPEG‑4 video, at up to 25/30 images per second on each channel. A Web browser or Bosch’s comprehensive video management system can receive and display the images.
The VIP X2 is available as an audio model, VIP X2A providing bi-directional audio communication in parallel to video. Besides the standard line-level interfaces for both audio channels, it has integrated amplifiers to connect a microphone and speaker to channel 1 directly.

VIP X2 Dual-channel Video Encoder

Input/output

Video/2 x input

• connector BNC
• impedance 75 ohm, switchable
• signal Analog composite, 0.7 to 1.2 Vpp, NTSC or PAL

Audio (audio versions only)/1 x mono line in, 1 x mono line out, 1 x microphone input, 1 x speaker output

• connector 2 x 3.5 mm stereo jack, 1 x CombiCon
• signal line in 9 kohm typical, 5.5 Vpp max
• signal line out 16 ohm min, 3.0 Vpp max
• signal microphone 2 kohm typical, 2.8 Vpp max at -20 dB, 2.3 Vpp typical
• signal speaker 4 ohm min, 6 Vpp max, 1 W RMS
Standard G.711; 300 Hz to 3.4 kHz
Data rate 80 kbps at 8 kHz sampling rate
Alarm 4 x input
• connector Clamp (non-isolated closing contact)
• activation resistance 10 ohm max
Relay 1 x output
• connector Clamp
• signal 30 Vpp, 2 A
COM port Clamp, RS‑232/422/485

Video

Standards MPEG‑4, M‑JPEG, JPEG
Data rates 9.6 kbps to 6 Mbps
Resolution Horizontal x vertical PAL/NTSC
• 4CIF/D1 704 x 576/480 (25/30 ips*)
• 2CIF 704 x 288/240 (25/30 ips*)
• 2/3 D1 464 x 576/480 (25/30 ips*)
• 1/2 D1 352 x 576/480 (25/30 ips*)
• CIF 352 x 288/240 (25/30 ips*)
• QCIF 176 x 144/120 (25/30 ips*) * Depending on picture content and movement
GOP structure I, IP
Overall IP delay 120 ms
Frame rate 1 to 50/60 (PAL/NTSC)

Network

Ethernet 10/100 Base‑T, auto-sensing, half/full duplex, RJ45
Protocols RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP,
SNTP, SNMP, 802.1x
Encryption TLS 1.0, SSL, AES (optional)

Control

Software update Flash ROM, remote programmable
Configuration Configuration Manager or Web browser

Connections

USB Port 1 x USB 2.0 high-speed port, 2.5 W max feed

Mechanical

Dimensions (H x W x D) 26 x 85 x 107 mm (1.02 x 3.35 x 4.21 in)
Weight Approx. 0.17 kg (0.37 lb)

Electrical

Power Supply VIP‑X‑PS included in the box
Input voltage 12 to 24 VDC
Power Consumption Approx. 10 VA

Environmental

Operating temperature 0 °C to +40 °C (+32 °F to +104 °F) ambient temperature
Relative humidity 20 to 80% atmospheric humidity, noncondensing
Thermal Value 82 BTU/h max
